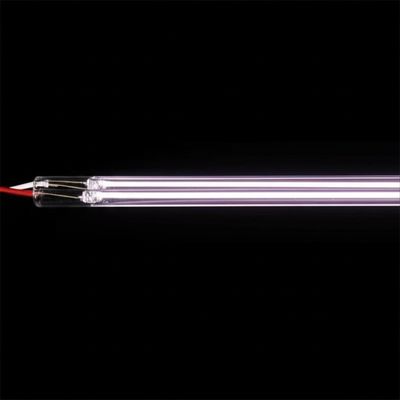

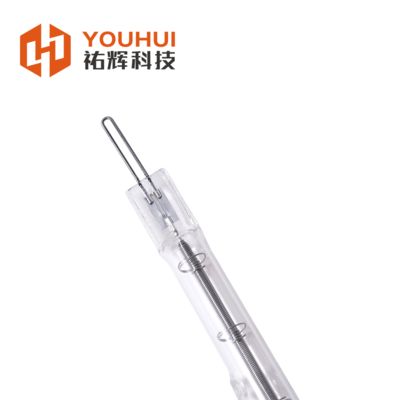

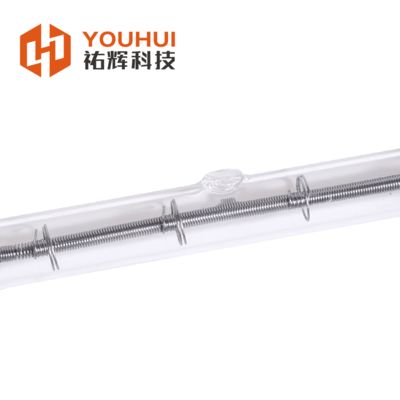

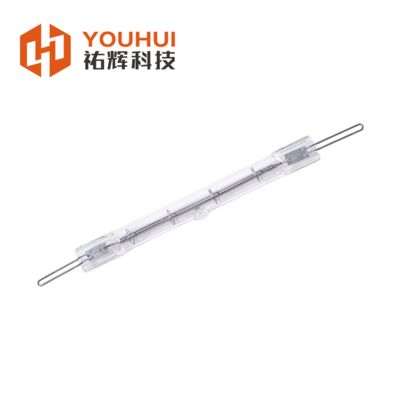

Clear Quartz Short Wave Infrared Heater Tube with 1100-2600°C Filament Temperature and 2500W Power for Industrial Heating

Clear Quartz Short Wave Infrared Heater Tube with 1100-2600°C Filament Temperature and 2500W Power for Industrial Heating

Marchio:	UVIR
Numero di modello:	SHW100019
MOQ:	10
prezzo:	Negoziabile

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

CINA

Certificazione:

Parole chiave:

riscaldatore a infrarossi

Tipo di filamento:

Tungsteno

Garanzia (anno):

1 anno

Colore:

Bianco

Lunghezza delle onde:

Onda corta

Applicazione:

Riscaldamento

OEM/ODM:

Sono disponibili molti tipi di tensione, wattaggio, lunghezza, base, cavi, posizione di combustione

Materiale:

filo del tubo di quarzo/tungsteno

Temperatura del filamento:

1100-2600 ° C.

Energia:

2500 W.

Imballaggi particolari:

Ogni lampada in un cilindro. Poi in un contenitore professionale di compensato.

Evidenziare:

1100-2600°C Filament Temperature Quartz Infrared Lamp

2500W Power Halogen Heater Tube

5000 Hours Lifespan Short Wave Infrared Heater

Descrizione del prodotto

Clear Quartz Short Wave Infrared Heater Tube Halogen Lamp for Industrial Heating

High-performance clear quartz short wave infrared heater tube halogen lamp designed for industrial heating applications. Features premium materials and customizable specifications to meet diverse industrial needs.

Product Specifications

Attribute	Value
Keywords	infrared lamp heater
Filament type	Tungsten
Warranty	1 Year
Color	White
Wave Length	Short wave
Application	Heating
OEM/ODM	Many types of voltage, wattage, length, base, cables, universal burning position available
Material	Quartz tube/tungsten wire
Filament temperature	1100-2600°C
Power	200-4000W

Key Features

Carbon Fiber Heat Lamp

High-priced imported carbon fiber filament
Smooth finished filament that doesn't fluff
Optimum power and maximum longevity

Quartz Glass Tube

High quality high-temperature quartz glass
Long service life: over 5000 hours
Nontoxic with no peculiar smell, no risk of contamination

Technical Specifications

Product name	Short wave infrared heating lamp
Heating length	50-1500mm (Customizable)
Voltage	24-575V
Wattage	2500W
Base	Customizable
Material	Quartz tube
Reflector	Customizable

R7 Single Wave High Quality Quartz Lamps

Adopt high-quality transparent quartz tube material, effectively increasing the radiation density of infrared rays. Standard single tube construction types available. Additional standard end terminations available upon request.

Infrared Wavelengths

Infrared wavelengths are in the range of the 750nm to 1mm electromagnetic spectrum.

Application Scenarios

Infrared Heating For Plastics Process

IR drying of coatings on plastics
IR stretching or shrinking plastics
IR Heating For Plastic Packaging
IR heating for blow moulding of PET bottles

Infrared Heating For Photovoltaic Industry

IR heating for string soldering
IR preheating for sputtering processes

Infrared Heating For Printing Industry

IR curing ink on cloth
IR drying for inkjet-based CTP plates
IR drying of printing products, such as using in banners machine

Infrared Heating For Food And Chemical Industry

IR heating for disinfection of tableware
IR heating of chicken and vegetables
IR heating of natural herbal medicine
IR heating for removing snow and ice

Infrared Heating For Glass Industry

IR preheating of car glass
IR drying of coatings on glass
IR heating for manufacturing and cutting laminated glass

Infrared Heating For Textiles Industry

IR drying of coatings on textiles
IR heating for laminating of fabrics

Infrared Heating For Electronic Industry

Coatings on electronic components
The aging of the electronic components

OEM Service

We can advise customers in choosing the right heat lamp for specific applications. Our Technical Department can design the right lamp based on specific technical requirements. We can produce many sizes and types of heat lamps according to customer requirements. If you have drawings available, we can create samples for you.
